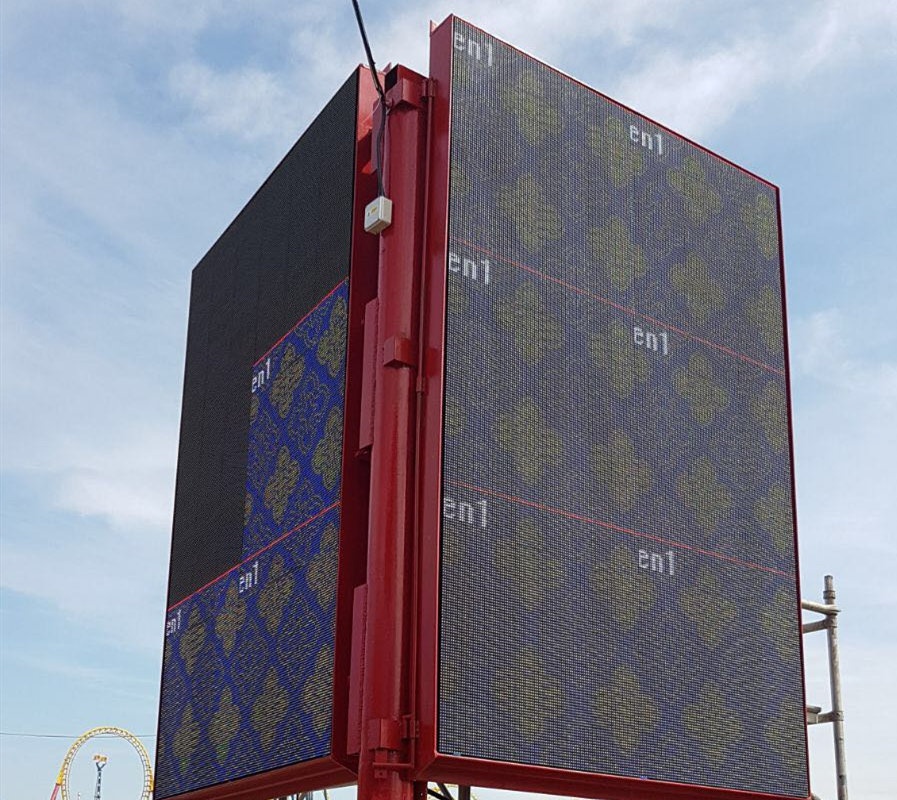

p6 p10 outdoor led display billboard

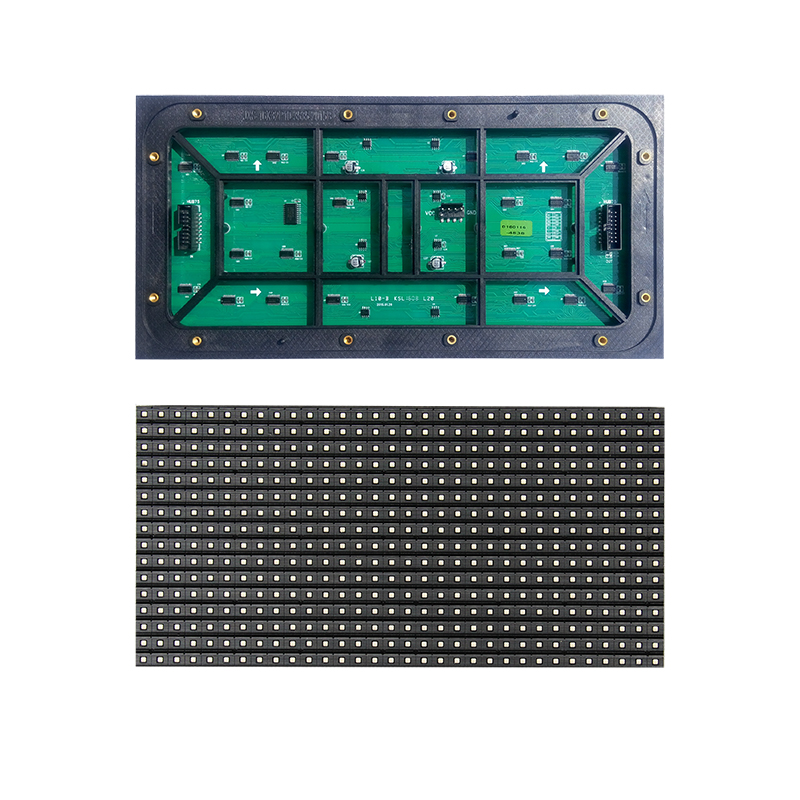

P10-4S Main technical parameters of indoor LED display
Physical pixel:10㎜	module size:320*160mm	cabinet size:960*960mm
physical dots:10000dots/㎡	1R1G1B	module resolution32*16=512dots
module weight - 0.3kg
cabient resolution 96*96dots	cabient space0.92m²	cabinet weight 35KG±0.05KG
p6 p10 outdoor led display billboard The main technical parameters
best view distance:10m～100m	Visual angle level≧160°optionl	vertical≥140°optional
Ave power consumption＜500W/㎡	Max power consumption＜1200w/㎡	Control method: synchronous control
DVI	Drive mode：1/4scan	Change frequency ≧60Hz
refresh≧1920Hz optional	brightness ≧5500cd/㎡	Frame change frequency≧50/60
brightness adjust	Drive IC：ICN2053/MBI5124	16degree adjust
Software manual adjustment: 100 adjustable 100
computer
WIN98、WINXP、WIN2000,etc
video singal
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc
control system
PCTV card (optional optional) + DVI graphics card + main control card + fiber transmission (optional optional)
Mean time between failures ≧5000小时	span life75000～100000hours	Pixel out of control rate ＜0.0002 pcs
PH10	SMD	SMD3535
